Deploy AS3 WAF Policy

1. Confirm BIG-IP is not configured

   • Explore BIG-IP GUI Local Traffic -> Network Map to validate tenant_02 app services does not exist

2. Create main.tf to use terraform bigip provider

   • Open client server vscode termninal

   • mkdir ~/projects/lab3

   • cd ~/projects/lab3

   • touch main.tf

   • use vscode to add the following code to main.tf

   terraform {
     required_providers {
       bigip = {
         source = "F5Networks/bigip"
       }
     }
   }

   provider "bigip" {
       address = var.address
       username = var.username
       password = var.password
   }

   resource "bigip_as3"  "tenant02_app3" {
      as3_json = "${file("app3.json")}"
   }


3. Create variables.tf

   • touch variables.tf

   • use vscode to add the following code to variables.tf

   variable "address" {}
   variable "username" {}
   variable "password" {}


4. Create terraform.tfvars

   • touch terraform.tfvars

   • use vscode to add the following code to terraform.tfvars

   address = "10.1.1.6"
   username = "admin"
   password = "F5d3vops$"


5. Create app3.json

   • touch app3.json

   • use vscode to add the following code to app3.json

   {
      "class": "AS3",
      "action": "deploy",
      "persist": true,
      "declaration": {
         "class": "ADC",
         "schemaVersion": "3.0.0",
         "id": "tenant2",
         "label": "Sample 4",
         "remark": "HTTPS with sslbridging and external WAF",
         "Common": {
            "class": "Tenant",
            "Shared": {
                "class": "Application",
                "template": "shared",
                "virt_addr_10_1_20_20": {
                    "class": "Service_Address",
                    "virtualAddress": "10.1.20.20"
                }
            }
        },
         "tenant_02": {
         "class": "Tenant",
         "App_3": {
               "class": "Application",
               "template": "https",
               "serviceMain": {
               "class": "Service_HTTPS",
               "virtualAddresses": [
                  {"use": "/Common/Shared/virt_addr_10_1_20_20"}
              ],
               "pool": "juice_pool",
               "policyWAF": {"use": "juice_awaf"},
               "securityLogProfiles": [{ "use": "secLogLocal"}],
               "serverTLS": "webtls"
               },
               "juice_pool": {
               "class": "Pool",
               "monitors": [
               "http"
               ],
               "members": [{
                  "shareNodes": true,
                  "servicePort": 3000,
                  "serverAddresses": [
                  "10.1.10.5"
                  ]
               }]
               },
               "webtls": {
               "class": "TLS_Server",
               "certificates": [{
                  "certificate": "webcert"
               }]
               },
               "webcert": {
               "class": "Certificate",
               "remark": "using default",
               "certificate": {"bigip":"/Common/default.crt"},
               "privateKey": {"bigip":"/Common/default.key"}
               },
               "juice_awaf": {
                  "class": "WAF_Policy",
                  "ignoreChanges": false,
                  "url": "https://raw.githubusercontent.com/gotspam/f5-waf-aws/master/basicwaf.xml"
               },
               "secLogLocal": {
                  "class": "Security_Log_Profile",
                  "application": {
                      "storageFilter": {
                          "logicalOperation": "and",
                          "requestType": "all",
                          "responseCodes": [
                              "100",
                              "200",
                              "300",
                              "400"
                          ],
                          "protocols": [
                              "https",
                              "ws",
                              "http"
                          ],
                          "httpMethods": [
                              "ACL",
                              "GET",
                              "POLL",
                              "POST"
                          ]
                      }
                  }
               }
            }
         }
      }
   }

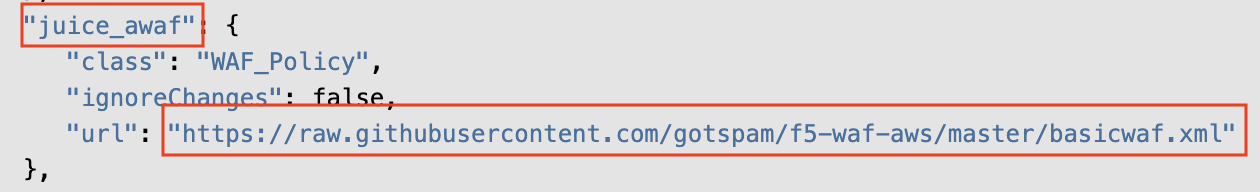

   • Explore the basicwaf.xml policy used for juice_awaf



6. Deploy Tenant02 App3 services

   • terraform  init

   • terraform plan

   • terraform apply -auto-approve

7. Confirm BIG-IP is now configured

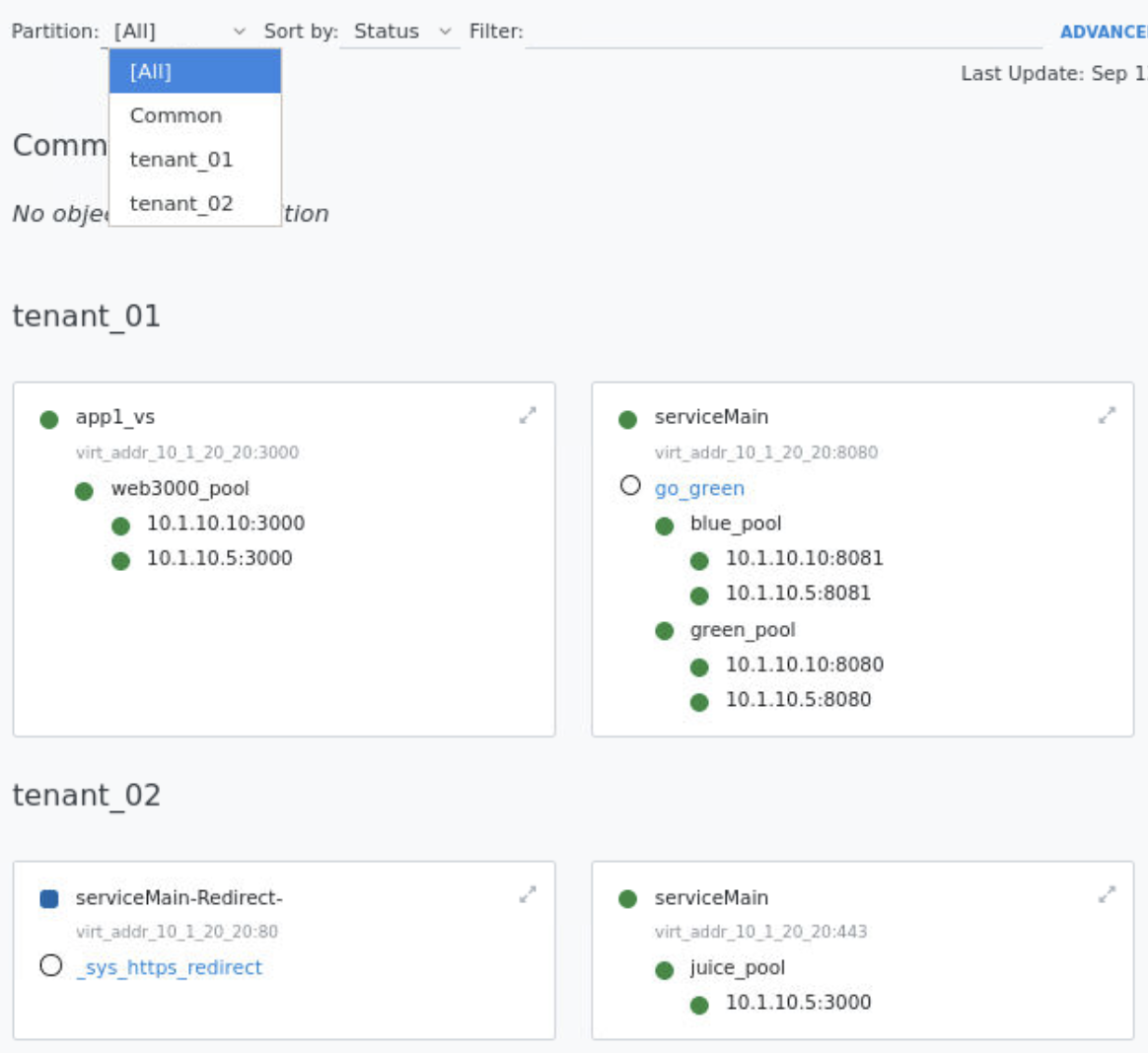

   • Explore BIG-IP GUI Local Traffic -> Network Map to view tenant02 serviceMain services

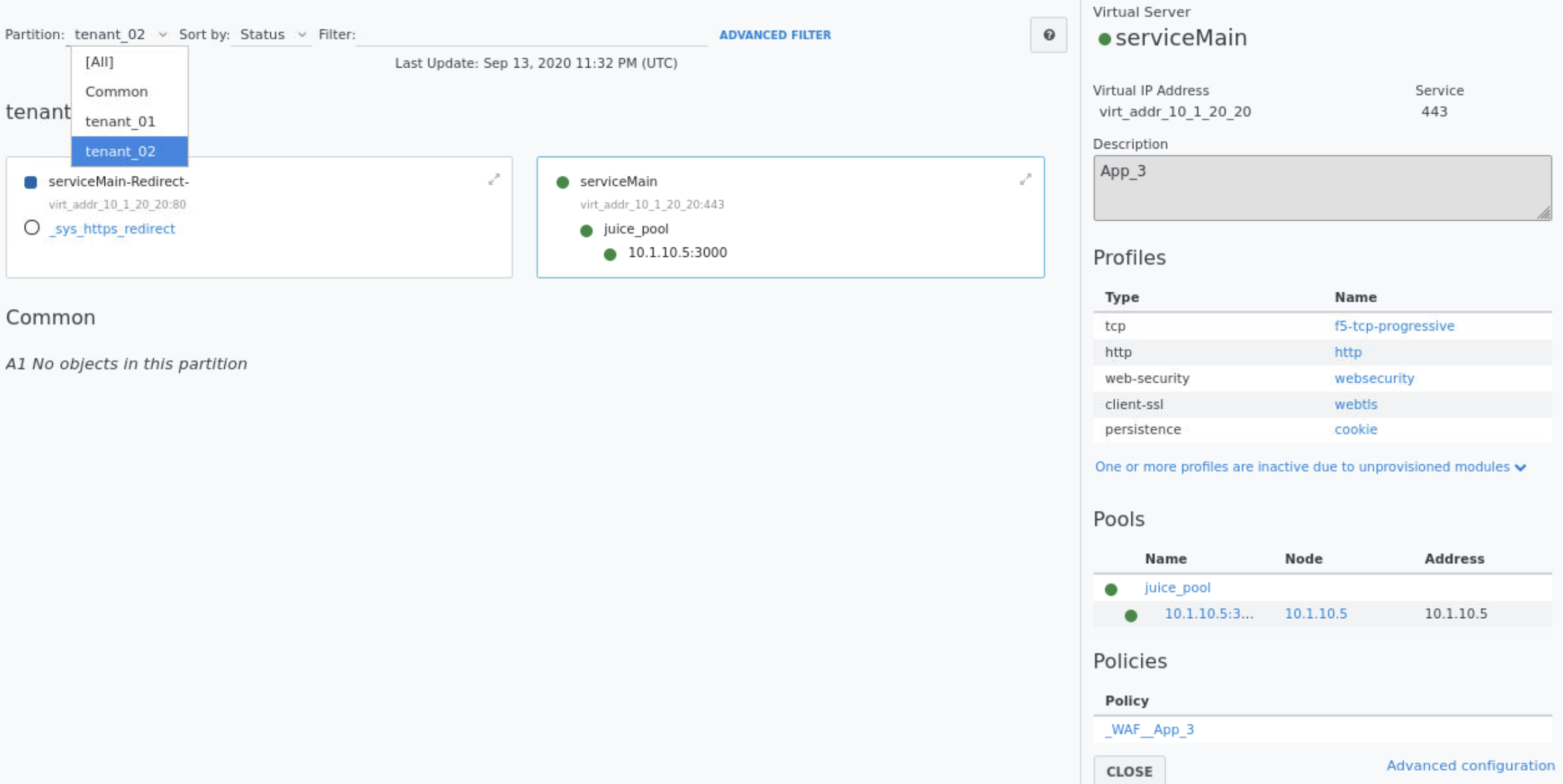

   • Click serviceMain to view details of tenant02 serviceMain services and note a WAF Policy associated

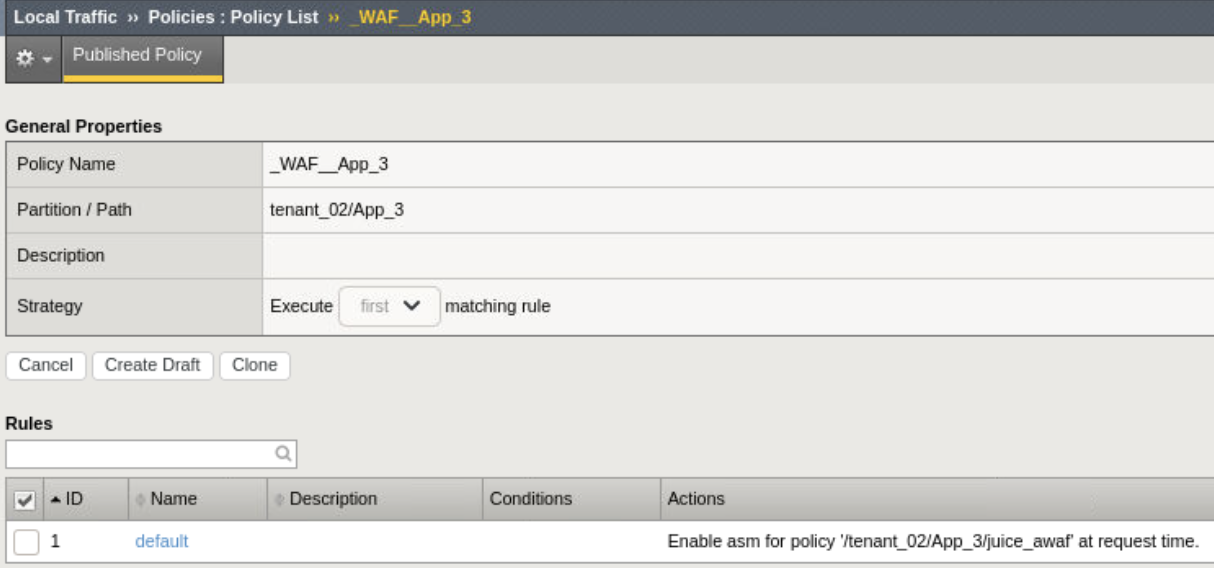

   • Click _WAF_App_3 to confirm juice_awaf policy associated with App_3

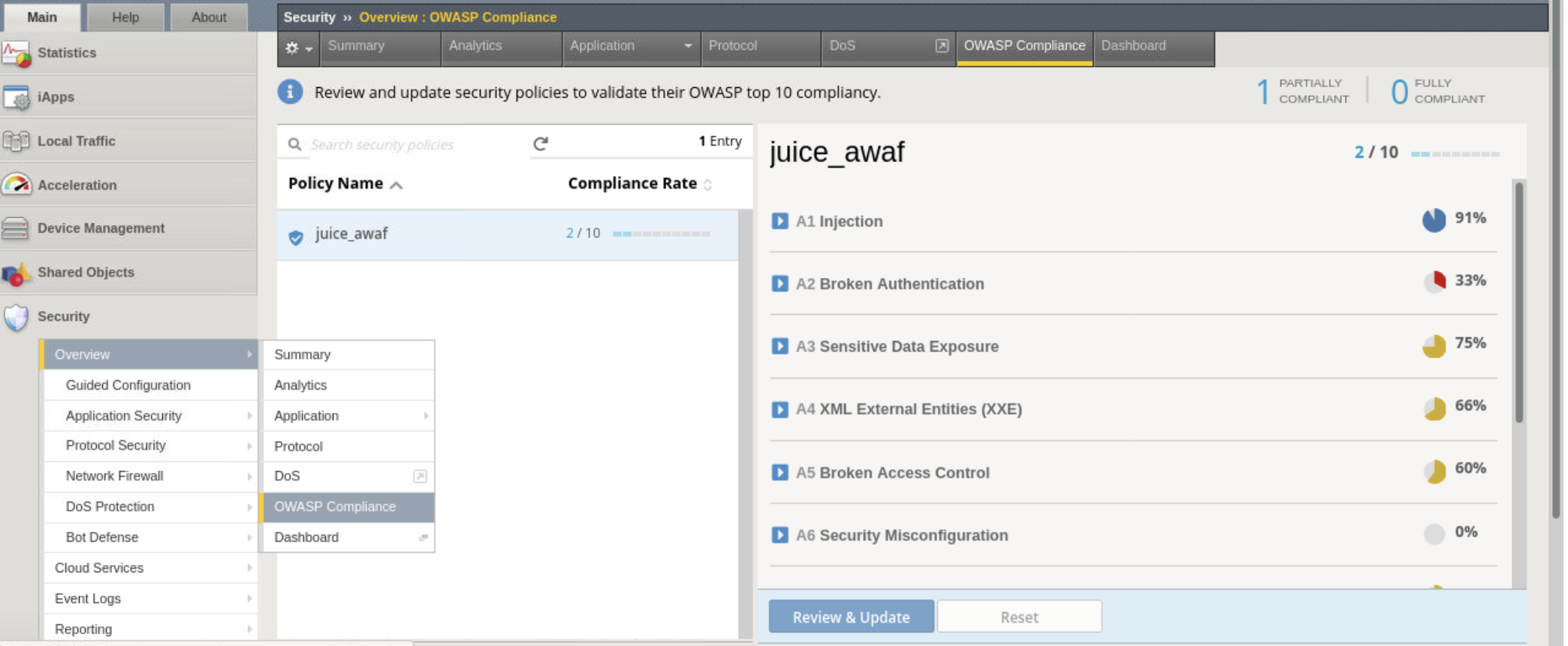

   • Explore BIG-IP GUI Security -> Overview -> OWASP Compliance then click juice_awaf to view dashboard



   Note

   Basic waf policy only covers a subset of the OWASP Top 10 vulnerabilities. Additional configuration is required to acheive greater OWASP compliance.

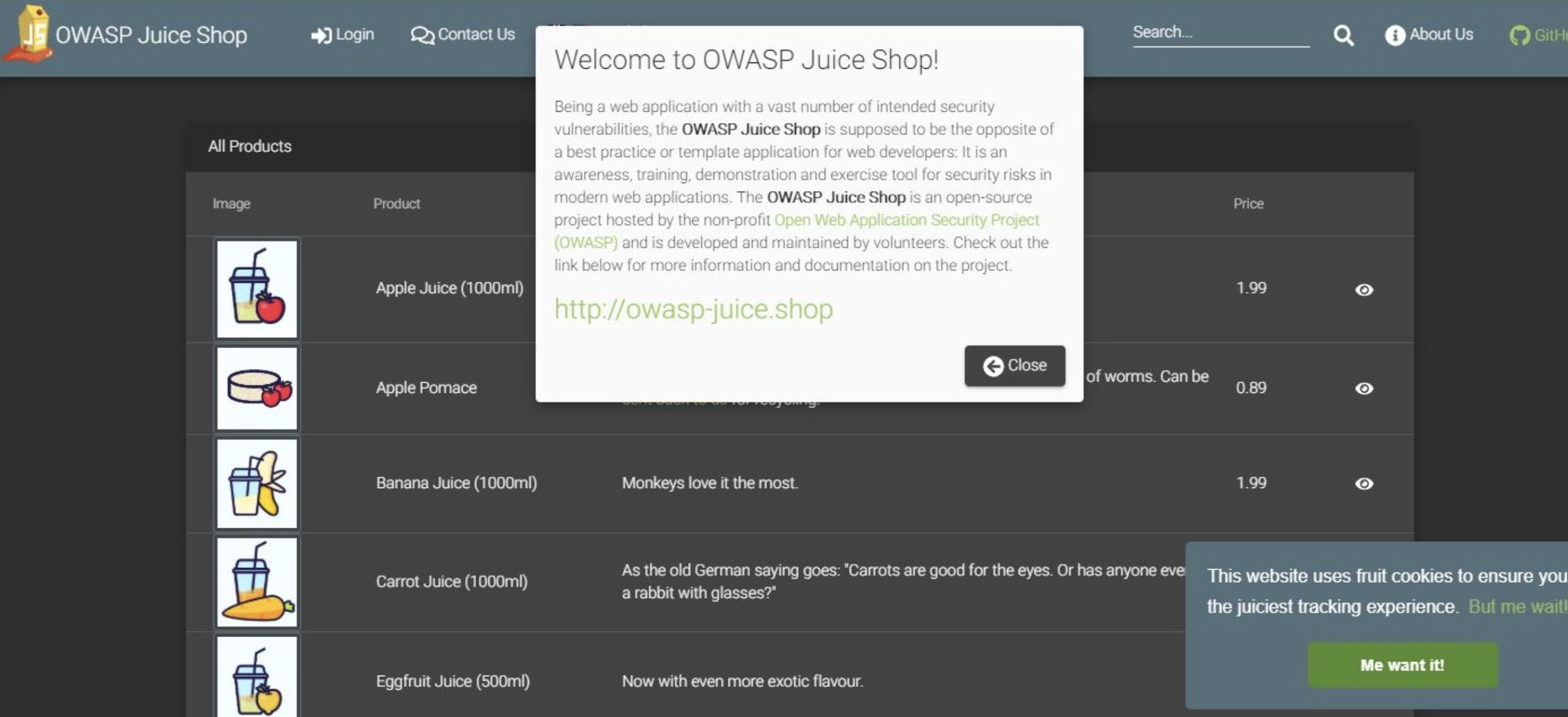

8. Confirm serviceMain is serving up juiceshop app

   • Open new tab on client server Firebox Browser

   • Browse to bigip (https://10.1.20.20)

   • Click advanced and accept risk



9. Test sql injection attack

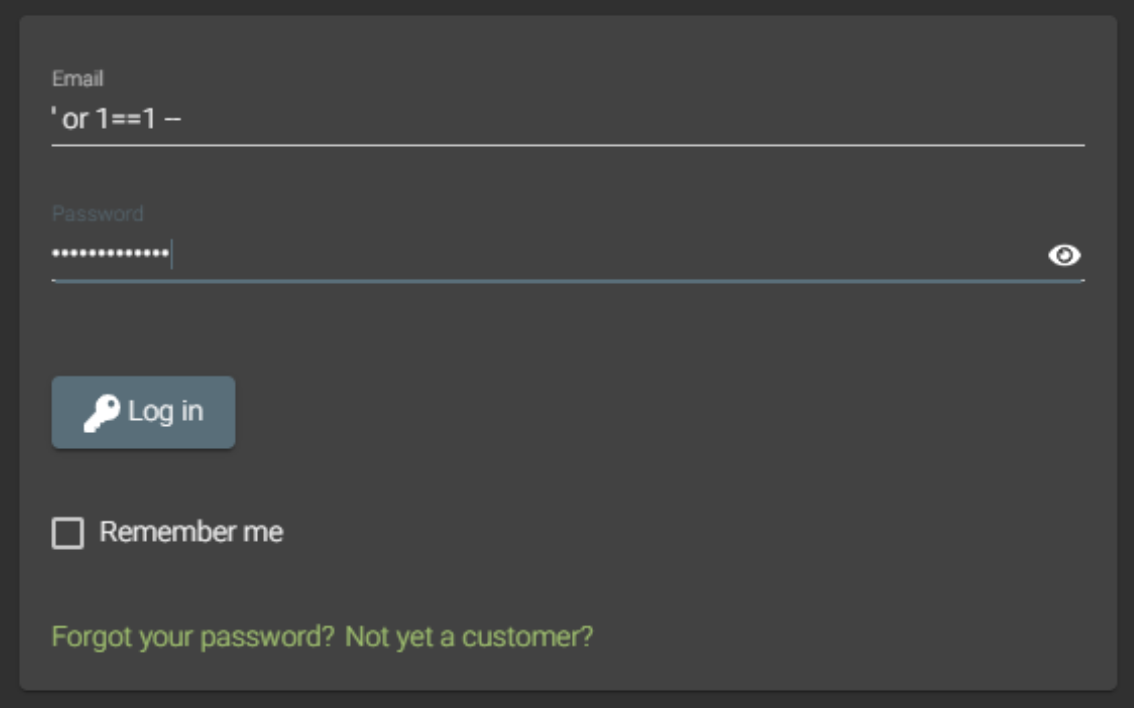

   • Click Account -> Login and enter 'or 1==1 -- for email address

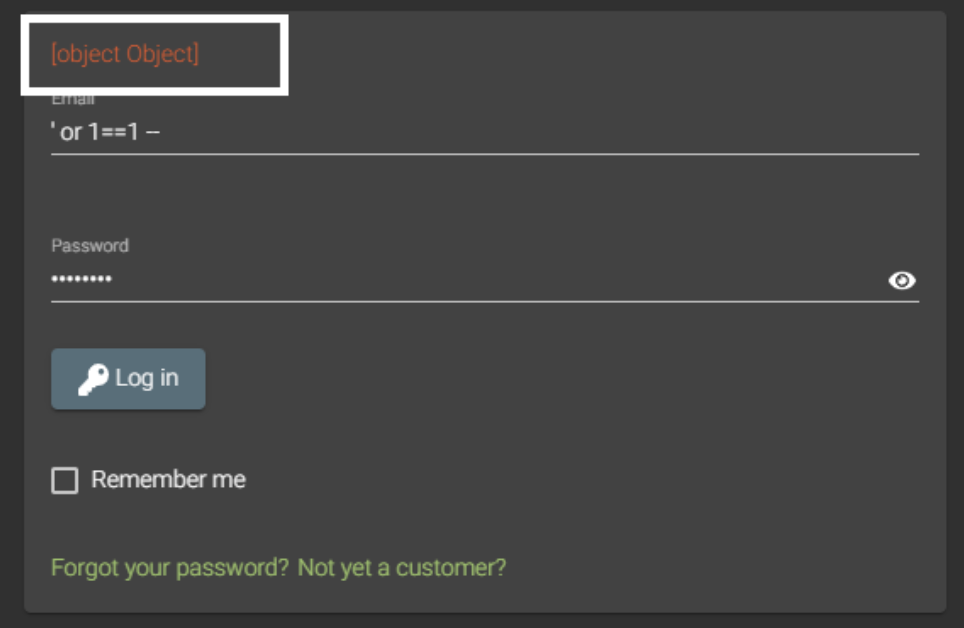

   • You should receive an error which is typical of poor error handling but at least login was protected.



10. Test sql injection on unprotected juiceshop (http://10.1.20.20:3000)

    • Repeat same steps as previous attack

    • You should receive a message that you’ve successfully solved a challenge

    Note

    Bonus lab - Replace waf policy with a different external policy. I recommend creating a new app3a.json and policy.

    Hint

    Follow the github trail and examine the BIG-IP GUI Security -> Overview -> OWASP Compliance after applying. (https://raw.githubusercontent.com/gotspam/f5-lab-days-hashi-basics/master/assets/lab3/owaspwaf.xml)
